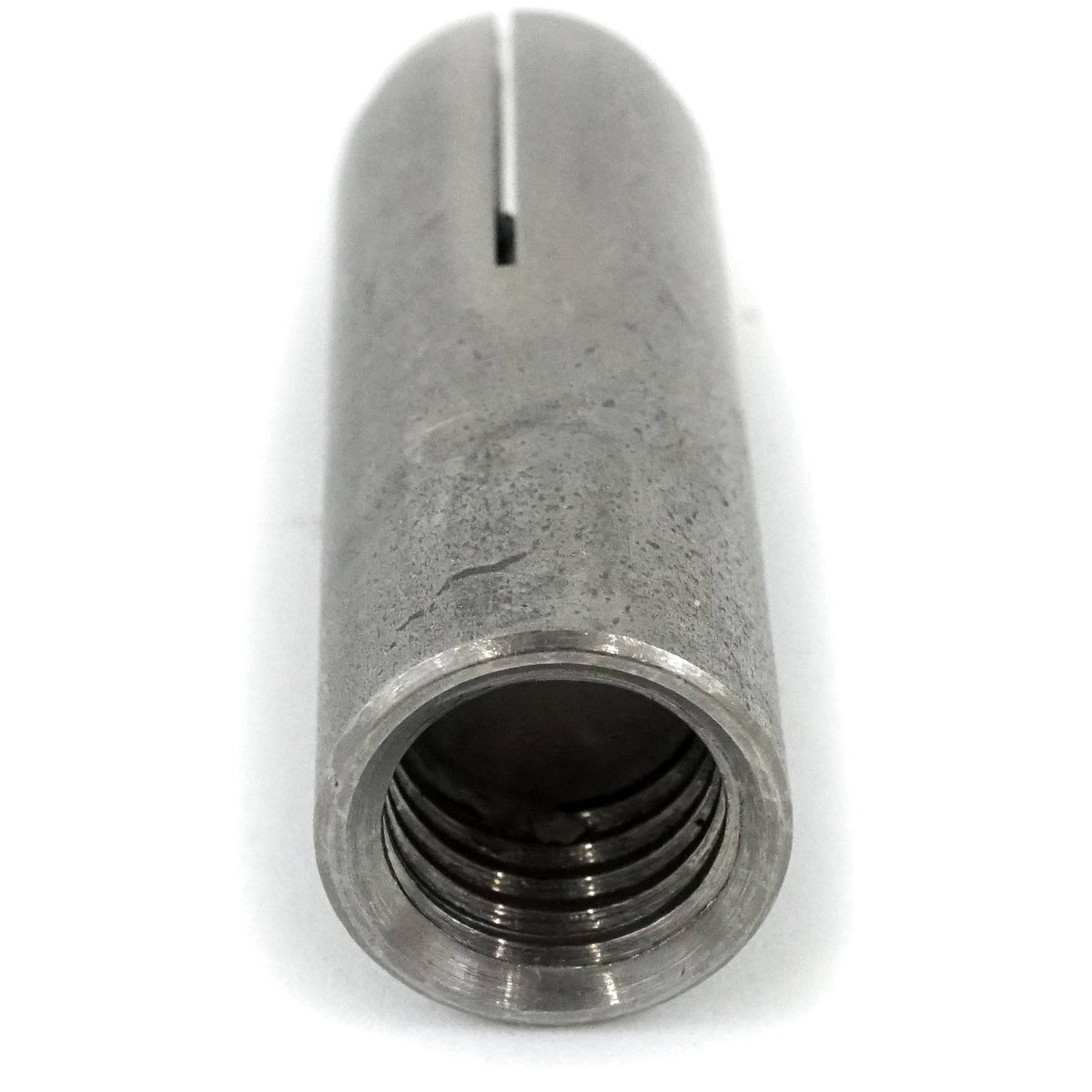

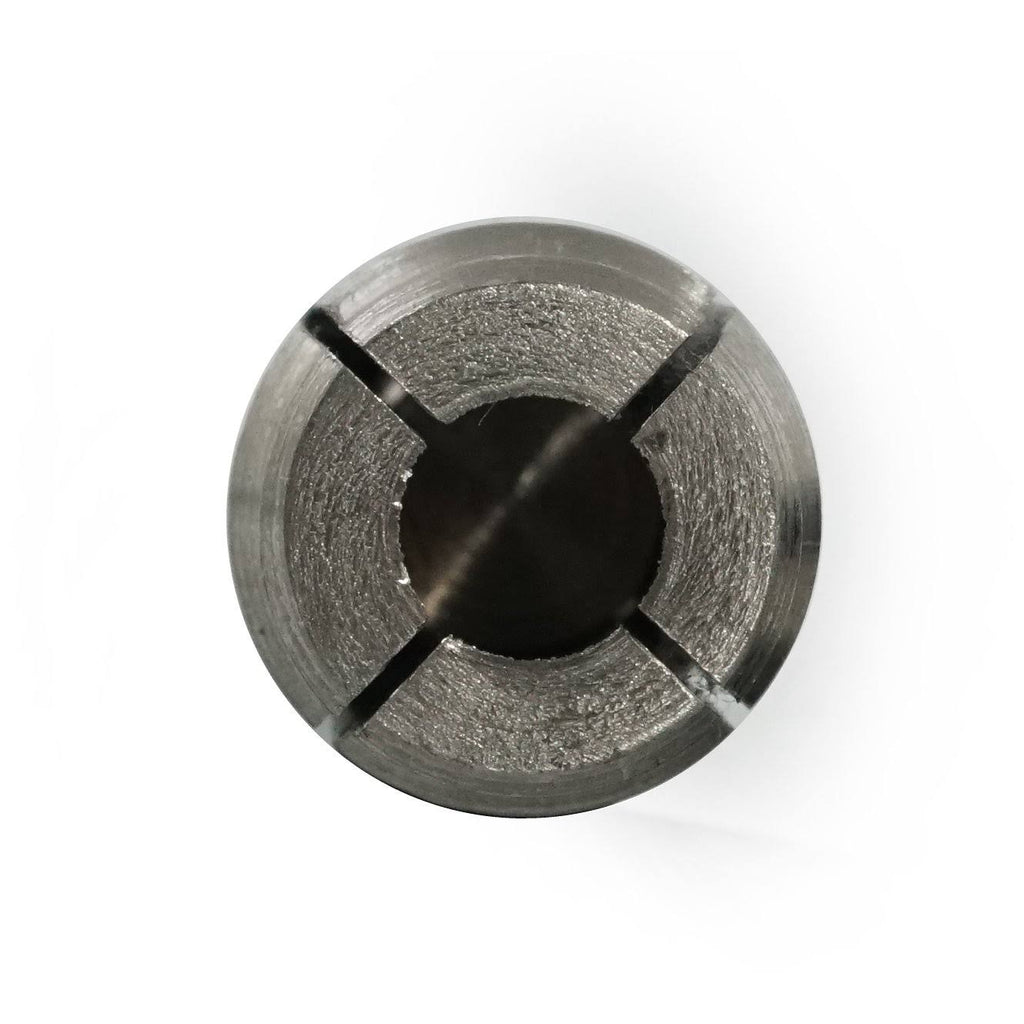

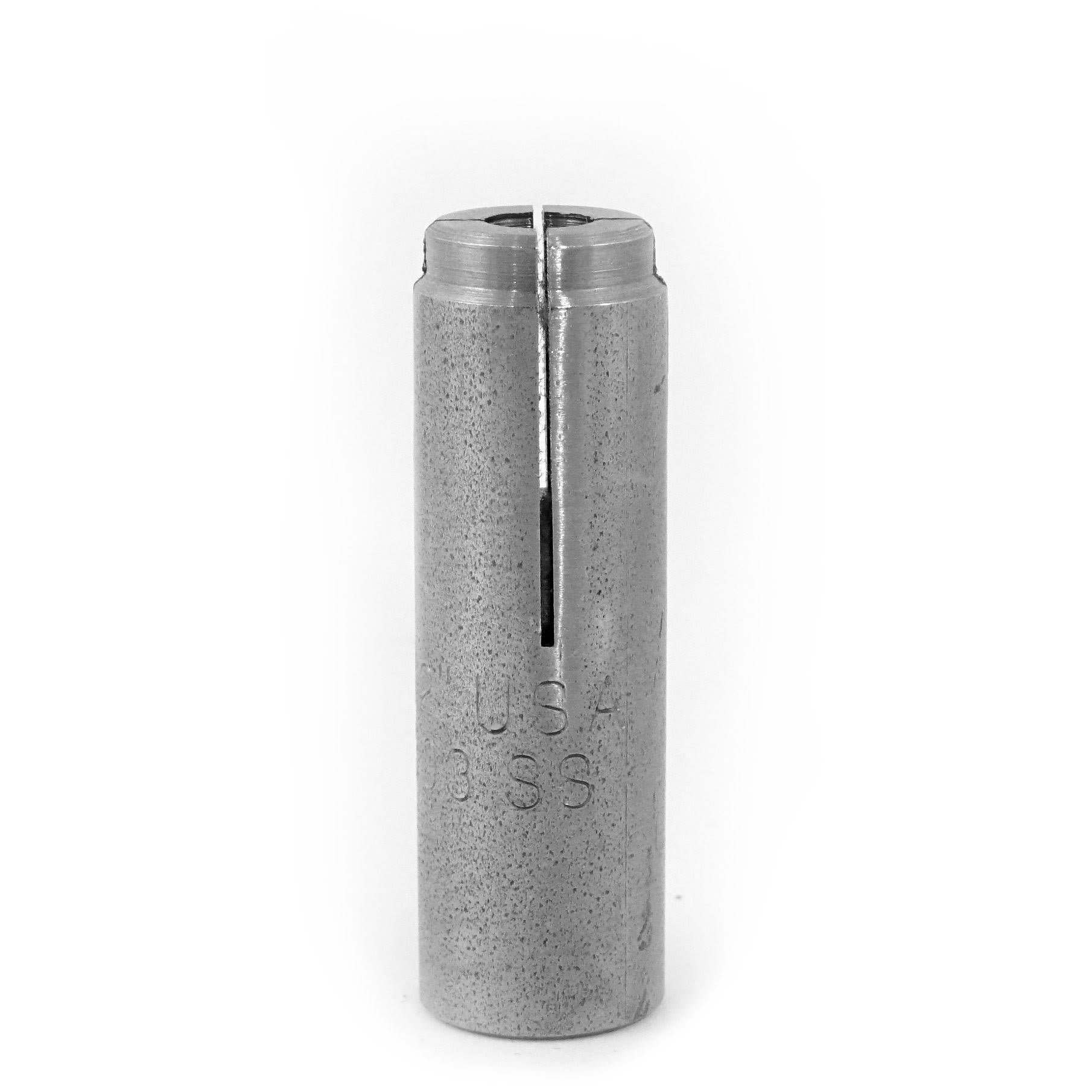

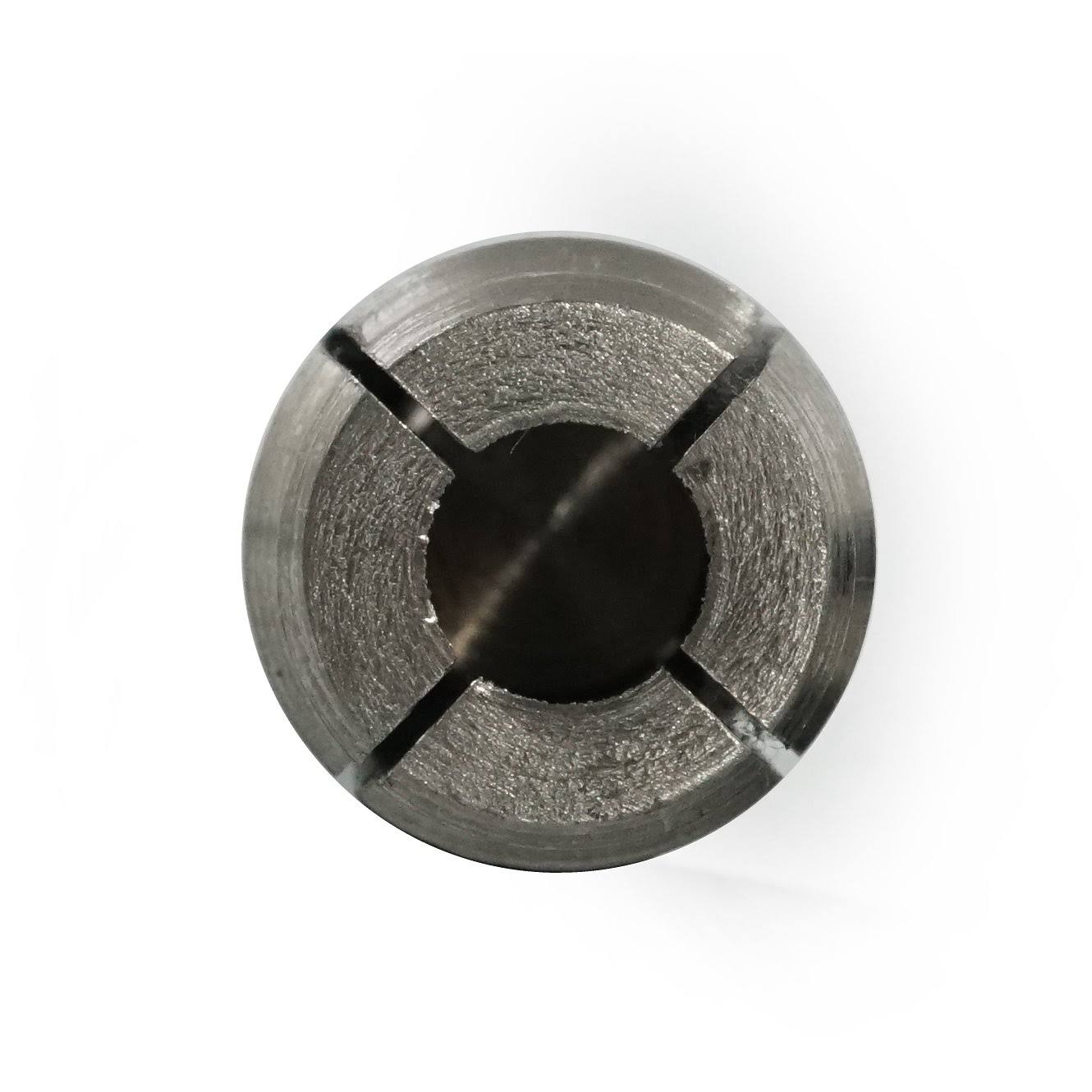

3/4x22 Drop-In Anchor 316 Stainless Steel (25 per Box) D29392
Sale price
$35.50
Regular price $134.49
Skip to product information
Applications the anchor is made from 316 stainless steel and meets the buy america act baa. This anchor is designed for use in concrete only, and should never be used in block or brick base material. Environment the anchor is designed for use in a submerged/chemicals environment. Hole diameter/bit diameter the anchor requires a 1in hole to be drilled in the base material concrete only. The hole should be drilled with carbide tipped bit that meets ansi standards and used in a hammer drill. Minimum embedment the minimum anchor embedment into the concrete is 3-3/16in. Therefore, the anchor must be installed so that a minimum of 3-3/16in of the anchor is embedded into the concrete. Spacing between anchors each anchor must be spaced a minimum distance of 10in from each other when measured center to center. Edge distance it is very important not to install the anchor any closer than 5in from an unsupported edge of the concrete.
3/4x22 Drop-In Anchor 316 Stainless Steel (25 per Box) D29392
Sale price
$35.50
Regular price $134.49
Shipping calculated at checkout.
