PCI-E to SATA 3.0 Card, 8-Port SATA3.0 Interface Expansion Card, Pack of 2 O4675
PCI-E to SATA 3.0 Card, 8-Port SATA3.0 Interface Expansion Card, Pack of 2 O4675

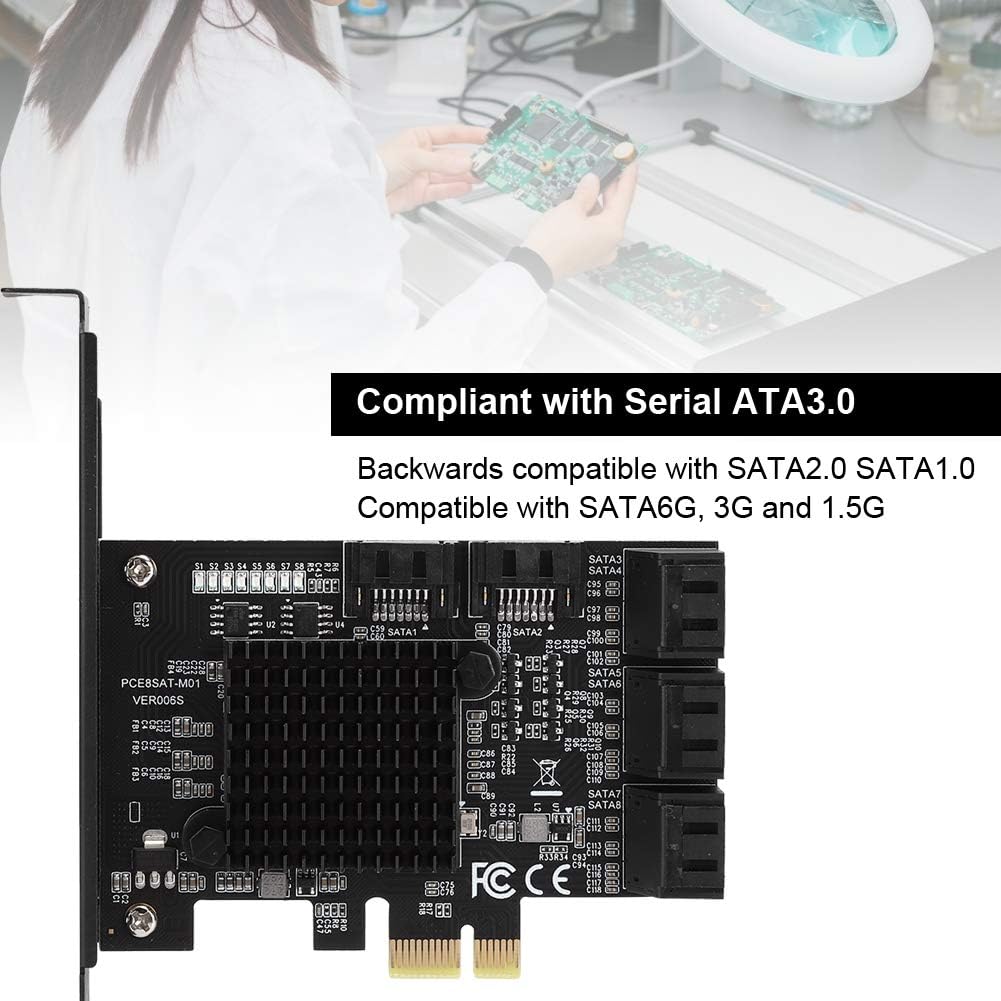

【Strong Compatibilitys】This PCIE SATA card with 8pcs SATA3.0 expansion interface. Compliant with Serial ATA 3.0 specification, backward compatible with SATA2.0 SATA1.0; PCI-Express v2.0 compliant, backward compatible with PCI-Express v1.0.
【6.0 Gbps SATA 3.0 PCIe Card】Supports communication speeds of 6.0 Gbps, 3.0 Gbps and 1.5 Gbps; supports Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x, and Gen 3i.

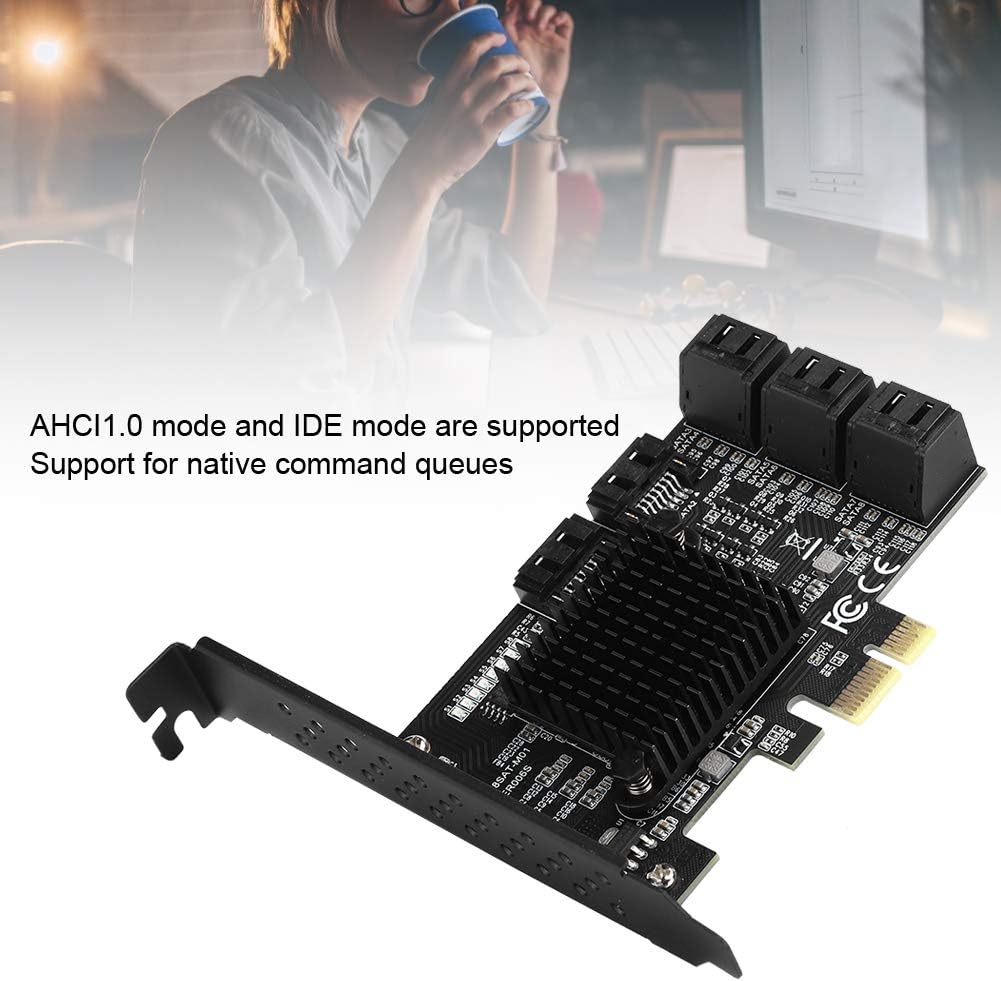

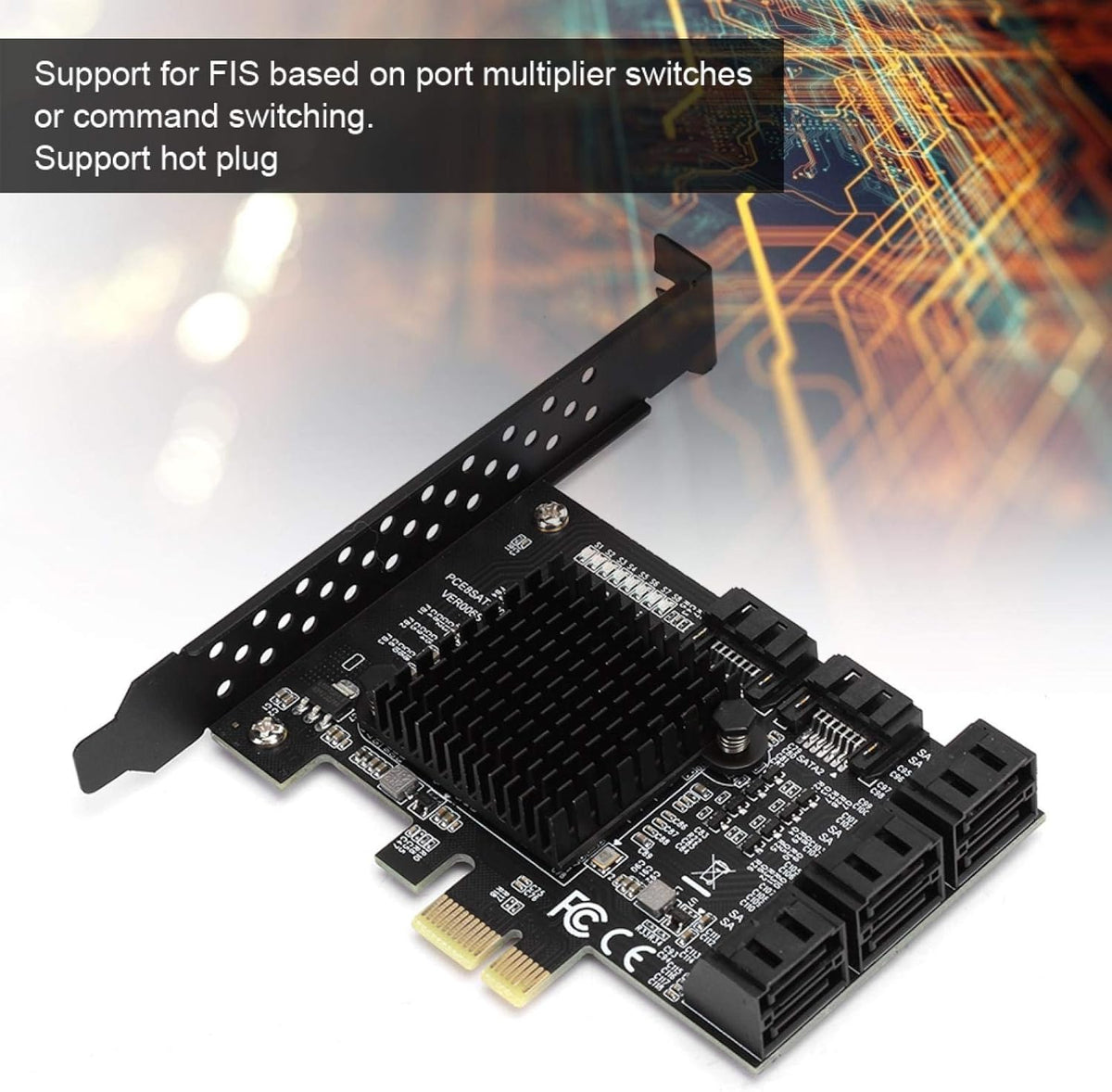

【AHCI1.0 and IDE Modes】Supports AHCI1.0 mode and IDE mode, native command queue (NCQ), FIS based on port multiplier switch or command switching and hot plug.
【Wide Applications】This PCIe to SATA controller expansion card compatible with SATA6G, 3G and 1.5G hard drives.User with SATA3.0 data cable for best results.Fit For Windows 7/8/XP/10 Fit For Ubuntu
【100% Satisfaction Guarantee】This 8 ports PCI-E to SATA 3.0 card has a complete after-sales service, If you have any questions about the product or you are not satisfied,please contact us at any time, we will provide you with the best solution.Your satisfaction is our main concern.
Specification:
Item Type:PCI-E to SATA 3.0 Card
Model:PCE8SAT-M01
Master: Fit for Marvell 88SE92xx+JMB5XX
Interface: PCI-E 1X 2X 4X 8X 16X
Support System:Fit For Windows 7/8/XP/10 Fit For Ubuntu
Expansion Interface: 8 x SATA3.0 Interfaces

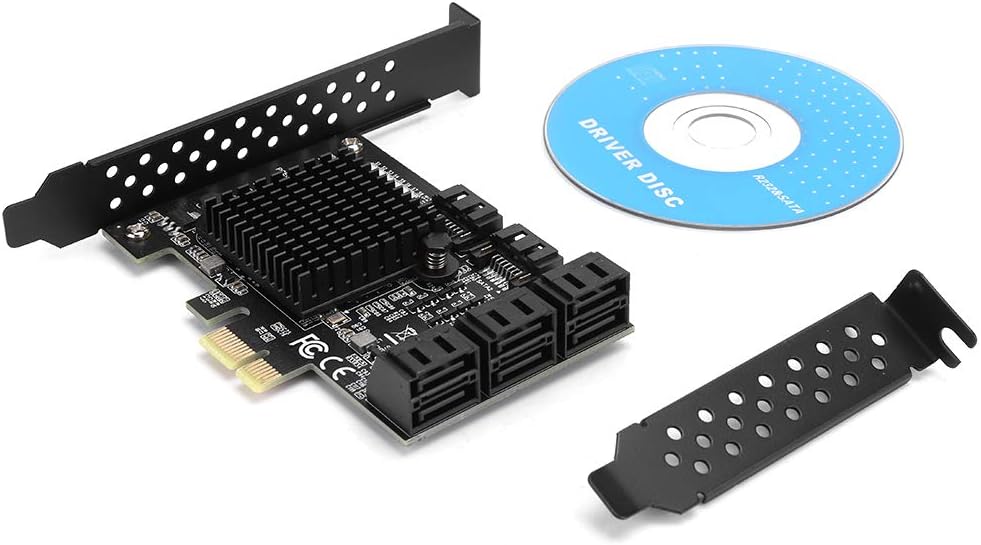

Package List:
1 x Expansion Card

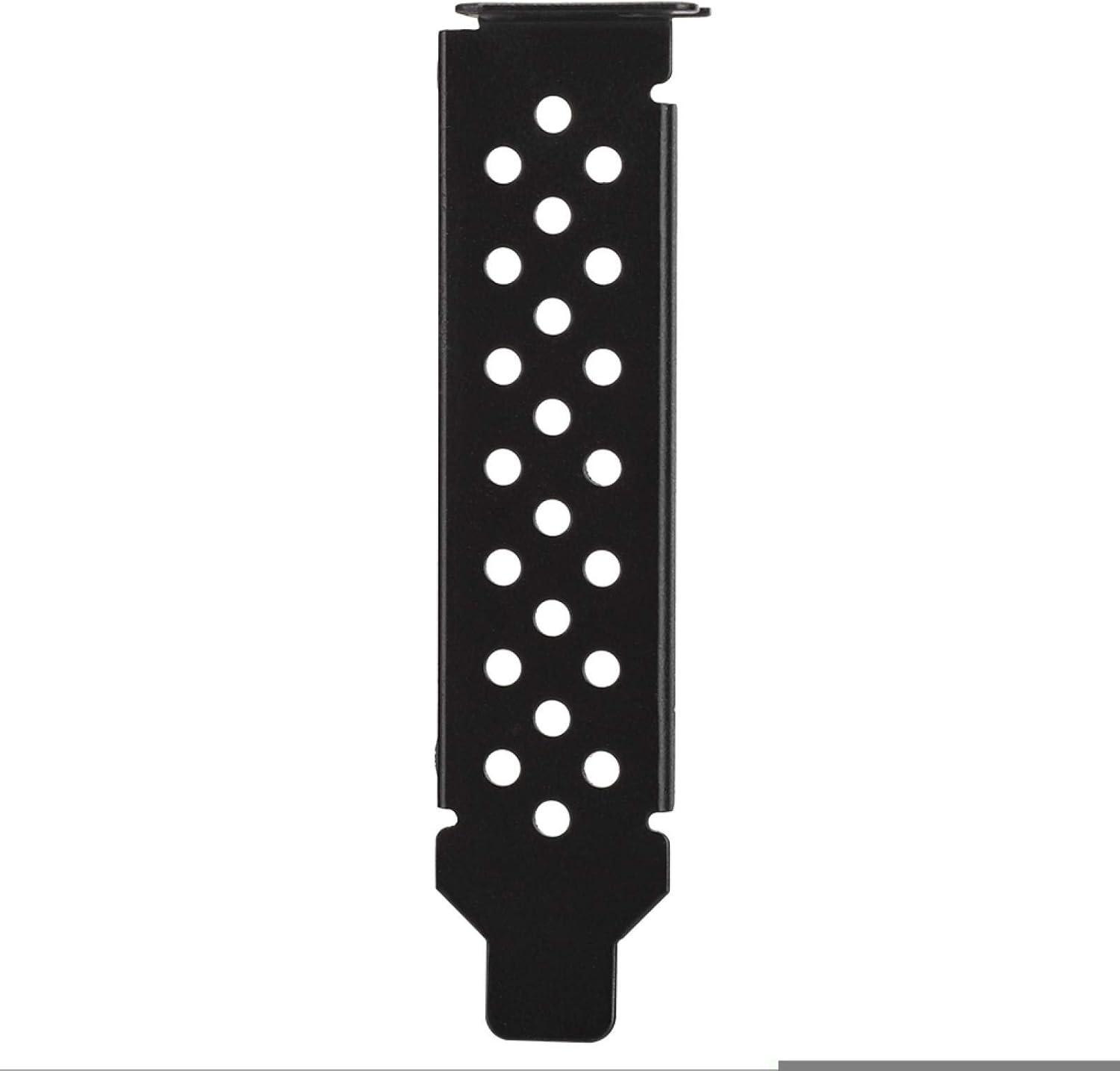

1 x Semi-High Baffle
1 x Driver Disc
Note:
PCI-E must have a slot above V2.0, V1.0 will not exceed 250M, PCI-E can be X1 or X16 as long as it is V2.0 version, there is spare X16 slot directly into X16 slot on.
BOIS setting of the motherboard: SATA mode should be changed to AHCI, although some motherboard PCIE is version 2.0, but BOIS does not enable high-speed transmission mode by default (gen2 high speed mode) needs to be manually turned on. In PCI-E 1.0 mode, only 200- 250M, 2.0 mode is below 350-400M. If you don't accept it, change the motherboard.
When the SATA port is used at the same time, it will slow down. It is not suitable for users who are pursuing speed. It is only used for the extended hard disk interface.
